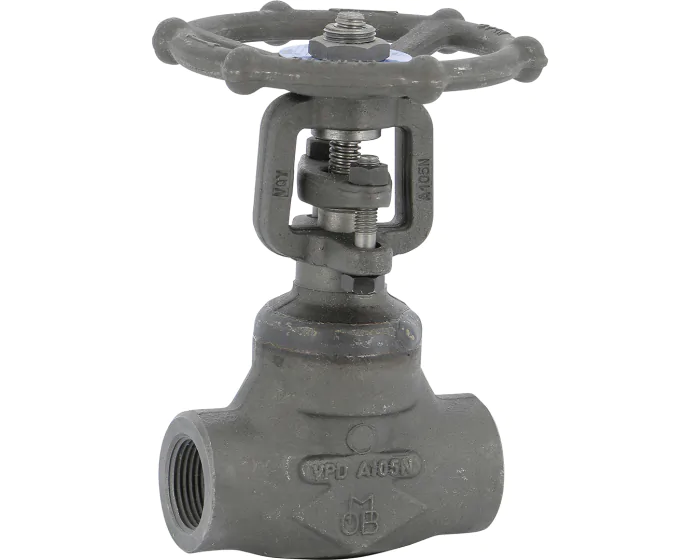

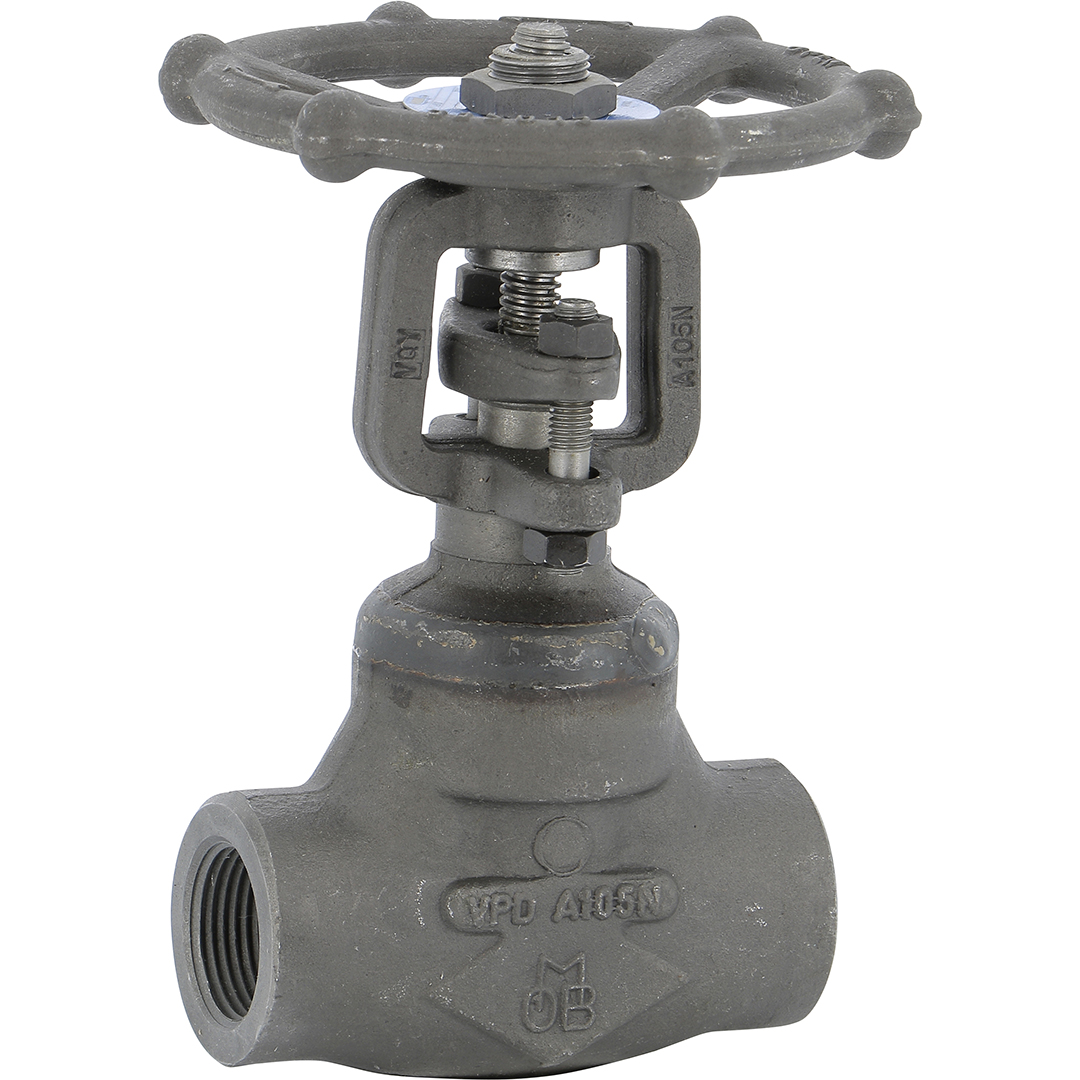

The 116 series gate valve, in forged steel Class 800, TRIM 5, F/F NPT, with welded bonnet, standard bore for oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 5 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Welded |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 410 |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 4.8 |
| Body material | Carbon steel ASTM A105 N |
| Gate material | Stainless steel ASTM A182 F6a stellited |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 136 |
| Connections | NPT FF |
| Seats | Stainless steel ASTM A276 Tp 410 stellite |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Black |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Carbon steel ASTM A105 N Standard 1/2'' | 116004 | S1007433 |
€66.69
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 3/4'' | 116005 | S1007434 |
€67.93
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 1'' | 116006 | S1007435 |
€91.37
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 1''1/2 | 116008 | S1007436 |
€201.61
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A105 N Standard 2'' | 116009 | S1007437 |
€242.43
(excl. btw)
|
add to cart |
